Face Anti-Spoofing Techniques to Prevent Presentation Attacks

Anti-spoofing techniques for liveness detection in face recognition

9 min read


Download pdf

Biometric face recognition technology is a key to security. Finding someone’s photo or video on Facebook or Youtube is easy. These images and videos can be used for ill intent. Face recognition-based biometric authentication systems are vulnerable to attacks via paper photographs, screen replay or 3D face reconstruction. A security system designed to prevent face spoofing is important. Following is an overview of presentation attacks and anti-spoofing techniques powered by Machine Learning.

Face recognition: How it works

Face identification and recognition is a process of comparing data received from the camera to a database of known faces and finding the match. See the video below for an example:

This general face recognition process is flawed. What if someone uses a fake face? A liveness check counters this, distinguishing between a real face and a picture.

Presentation attacks: An overview

Attacks on a face recognition system are called Presentation Attacks, or PA. These attacks can be sorted into the following categories:

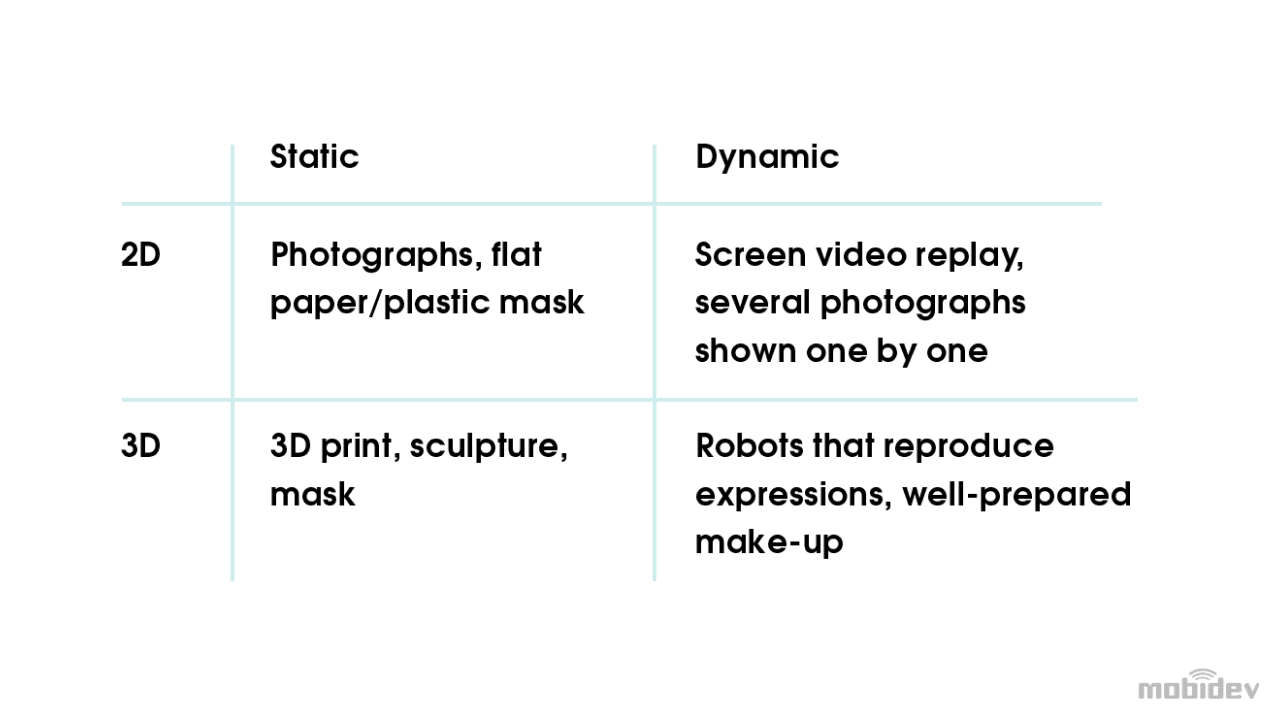

Presentation attacks overview
Of course, as technologies evolve, so do presentation attacks.

3D spoofing is not a big problem yet. 2D spoofing is more widespread. This puts the onus on detecting and preventing presentation attacks. The requirements are precise. The product must:

  • combat 2D attacks, static or dynamic
  • use images, not videos
  • work without user interaction

The objective: achieve maximum accuracy in minimum time while also providing a user-friendly experience. A model meeting these requirements would be easy to integrate with existing face recognition systems.

This video provides an overview of face recognition spoofing:

PAD solutions: Top techniques

Presentation attack detection (PAD) technology stacks include:

Tensorflow: An open-source framework for building and computing data flow graphs, allowing for the creation and training of neural networks for any level of complexity

Keras: High-level neural network application programming interface, or API, written in Python and capable of running on top of TensorFlow

Scikit-learn: Software machine learning library for the Python programming language

OpenCV: An open-source computer vision and machine learning software library

During research PyTorch was also used, a machine learning library used for deep learning applications and natural language processing. While this framework has the same abilities as Tensorflow, its ease of use and flexibility make it a trending machine learning algorithm among researchers.

Following is a detailed overview of PAD solutions:

Hand crafted features: Local Binary Pattern

Local Binary Pattern (LBP) is an anti-spoofing technique of texture image analysis, thresholding image pixels according to their neighbors. An image is split into small patches. All pixels are taken from around the center pixel and subtracted. LBP is outdated and cannot be used against a large variety of attacks. But it does have merit when used in combination with other solutions.

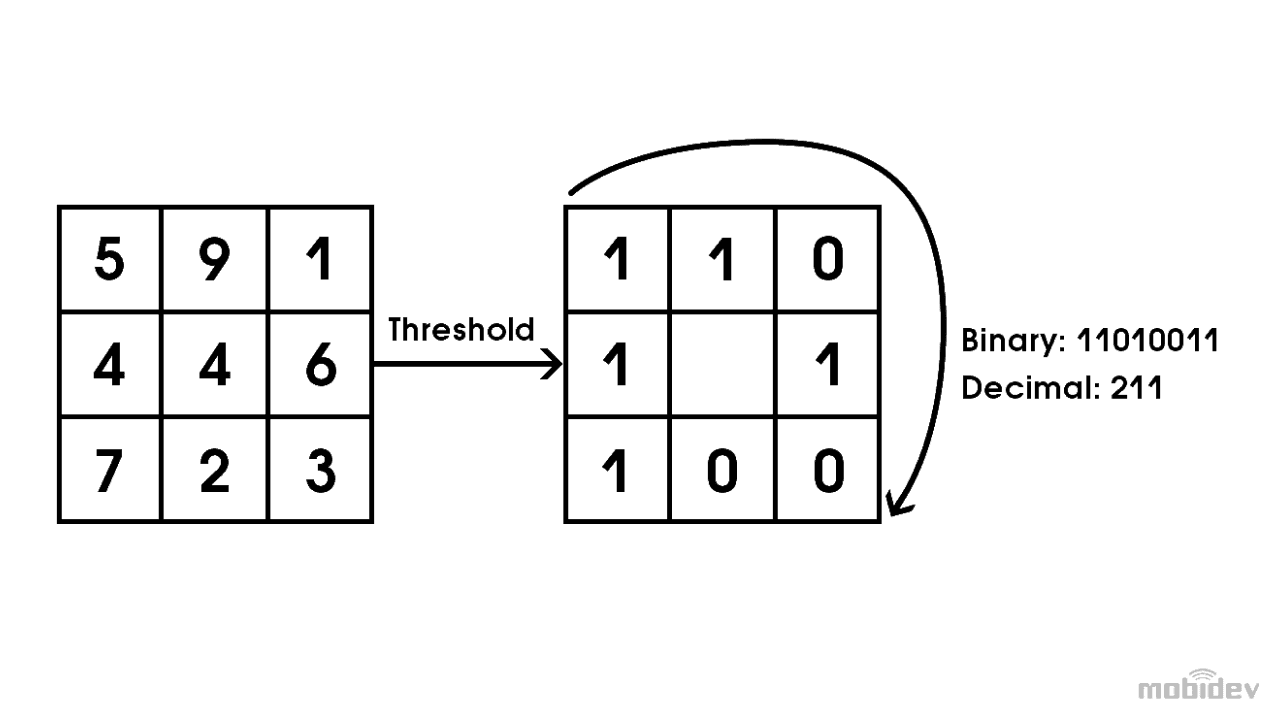

Hand crafted features: Local Binary Pattern
A negative result means 0 and a positive means 1. The resulting sequence of 0 and 1 (clockwise) is interpreted as a decimal number. The same calculations are made for all pixels in the patch. A histogram is constructed from the calculated values. This histogram is the texture descriptor of the patch. Histograms from all patches are then concatenated. That provides the feature descriptor of the image. It can be fed into a Support Vector Machine or any other algorithm, thus making a classification.

Finding the distinctions: Eye blink detection

Natural blinking can reveal the difference between live and fake faces. Humans blink an average of 15 to 30 times per minute. During a blink, the eyes remain shut for about 250 milliseconds. Modern cameras record videos with far smaller intervals between frames (50 milliseconds at 30 frames per second). Videos can be used to find frames showing the eyes shut. Those frames then can be counted. Implementation of eye blink detection can be based on face landmarks analysis and by calculating the area of the eye regions. Deep learning can also be applied for this task.

Deep learning features: Convolutional Neural Network

The development of convolutional neural networks (CNN) makes it natural to think of anti-spoofing as a binary classification problem. But there is no specific set of features the convolutional neural network would “see” and “understand.” The hope is that trained convolution kernels will detect what human eyes can’t see.
Deep learning features (CNN)
For example, distortions, if there are any, in the left picture can’t be seen. Distortions are visible in the right picture, but they are so diverse and dependent on the environmental conditions and device specifics that the network can’t use the image to generalize.

The network can work, but there’s a high risk of overfit on the dataset. Face anti-spoofing performance will be strong within a certain dataset, but the network won’t work in real conditions. A more viable solution is needed.

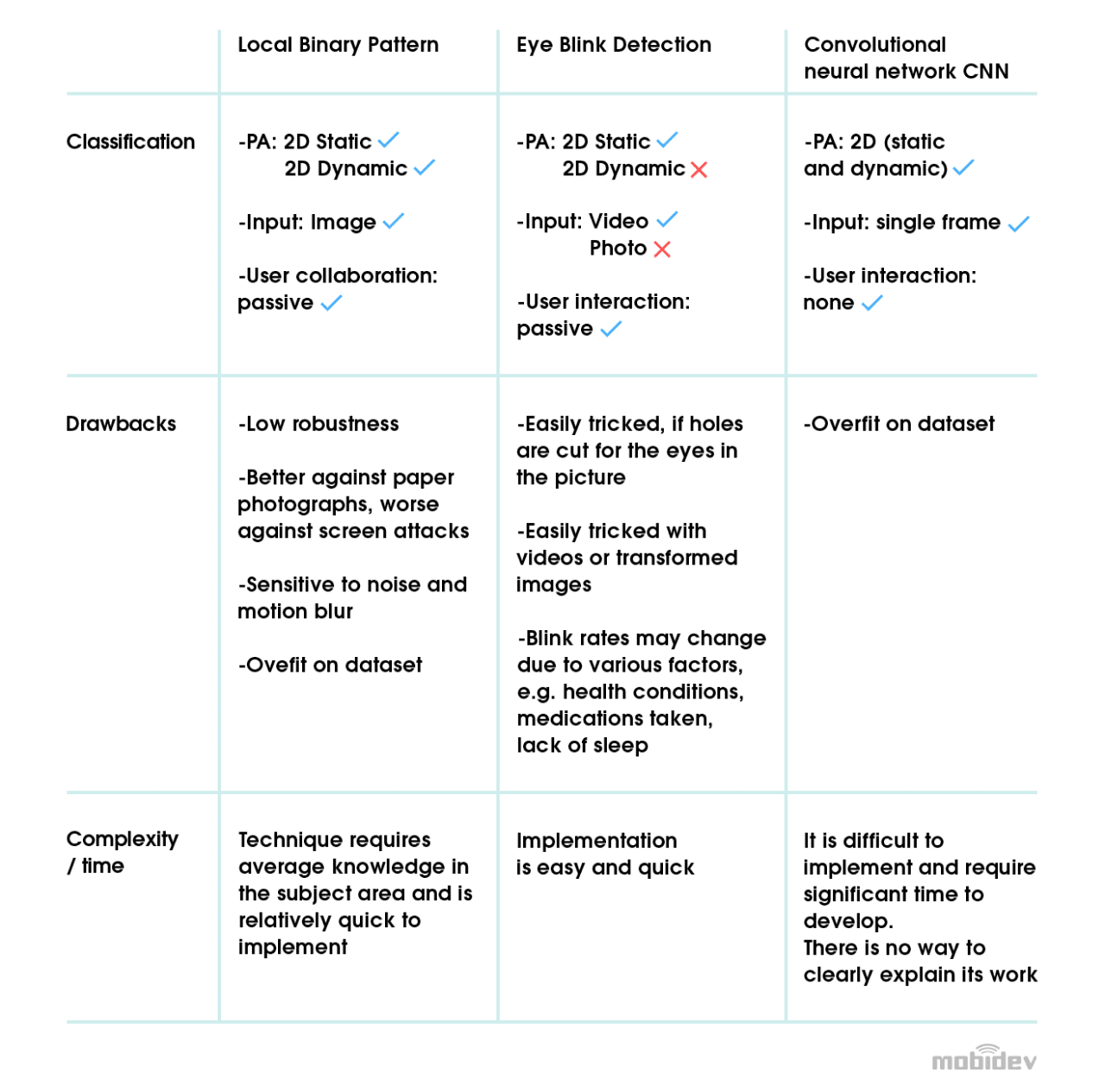

Anti-spoofing techniques in face-based biometric systems
* The most accurate result will be achieved through a combination of several solutions

Comparing actions: Challenge-response

Under this face recognition approach, a user is required to take a special action called a challenge for liveness detection. The system ensures that required action was taken. Usually, a group of actions is required to make the model reliable. These actions can include smiles, expressions of emotions such as sadness, surprise or head movements. These interactions require significant time and are inconvenient for users.

Stable and reliable: 3D Camera

The most reliable anti-spoofing technique uses a 3D camera. Precise pixel depth information provides high accuracy against presentation attacks. The difference between a face and a flat shape is discernible. While 3D attacks still cause difficulties, stable performance makes this technology the most promising. It works with smartphones and web cameras. Technologies that work with RGB images are preferable.

An answer: Active Flash

This meets all the requirements. It has no “black box problem.” It allows liveness detection using light reflections on a face. The idea is to change light environment by using the device screen as an additional source of light. White area, which covers the screen, produces appropriate reflection on the face.

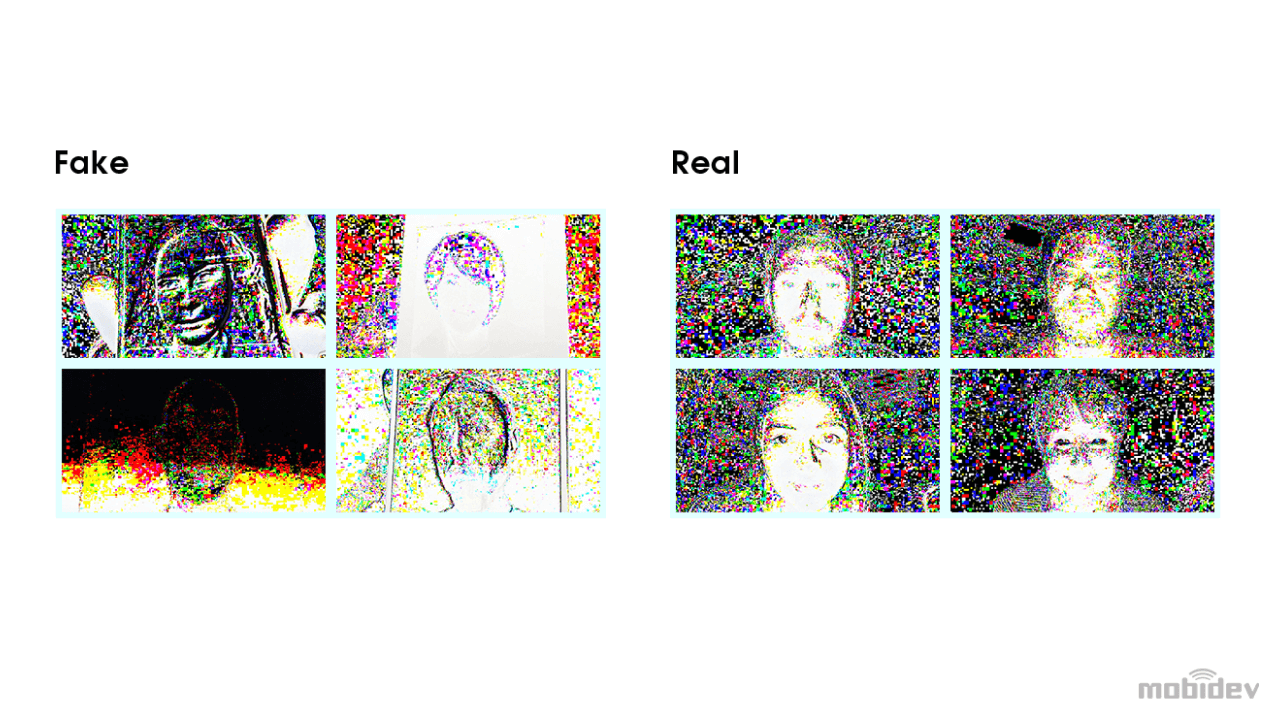

Active flash technique
Here is an example with raw pixel difference. In such an artificial way, real faces are distinguished from fake ones because of the differences in their surfaces. Frames before and after active flashing provide the data sample for training the network. Active flash helps separate and classify face features.

Note: Although this model works regardless of how the head is turned (with reasonable limits), proper alignment can increase accuracy of liveness detection.

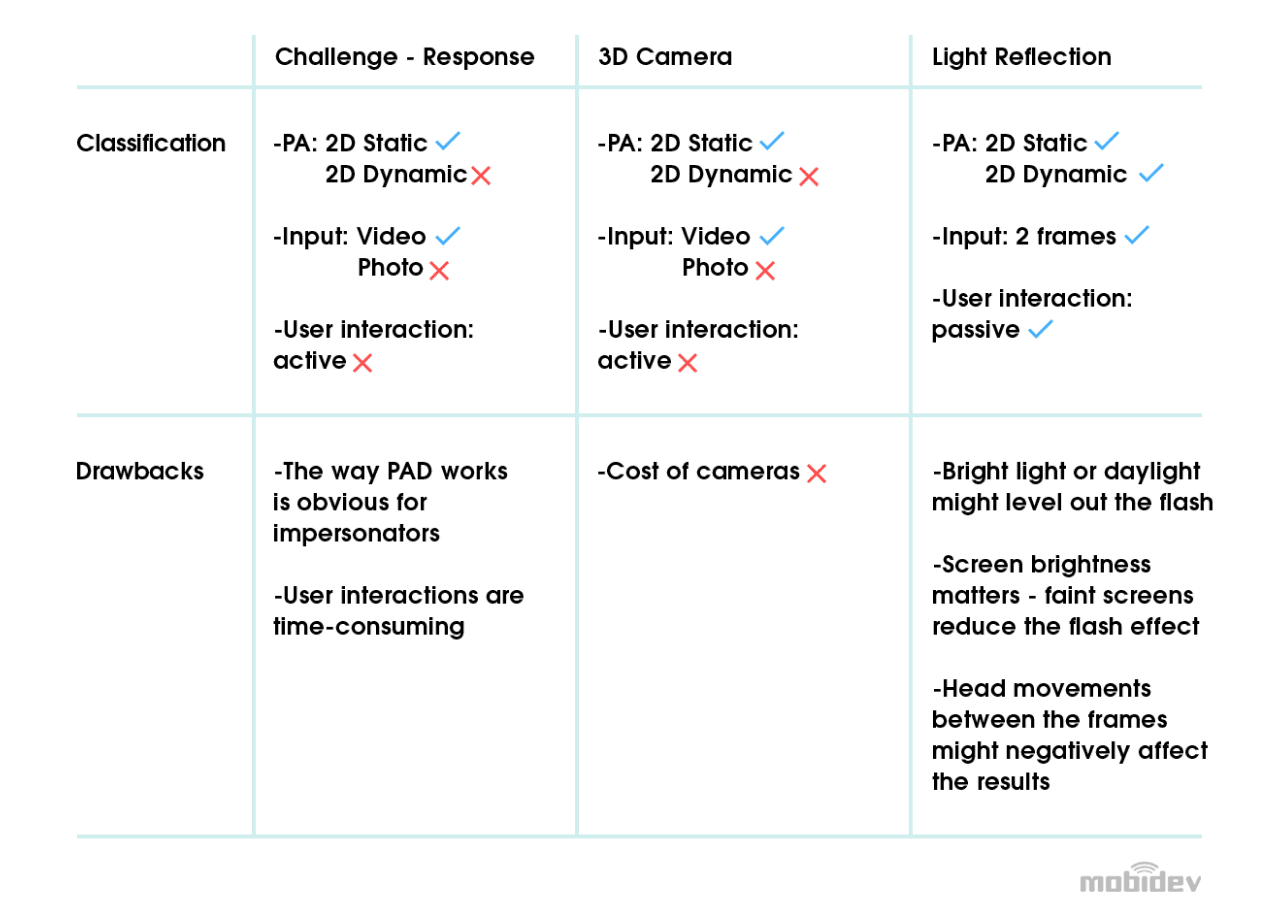

Comparison of anti-spoofing techniques for face recognition
* Each of these solutions is difficult to implement and takes time to develop. The most accurate result will be achieved through a combination of solutions

The liveness detection techniques can be used both separately and in combination.


Overview of Face Anti-spoofing Solutions

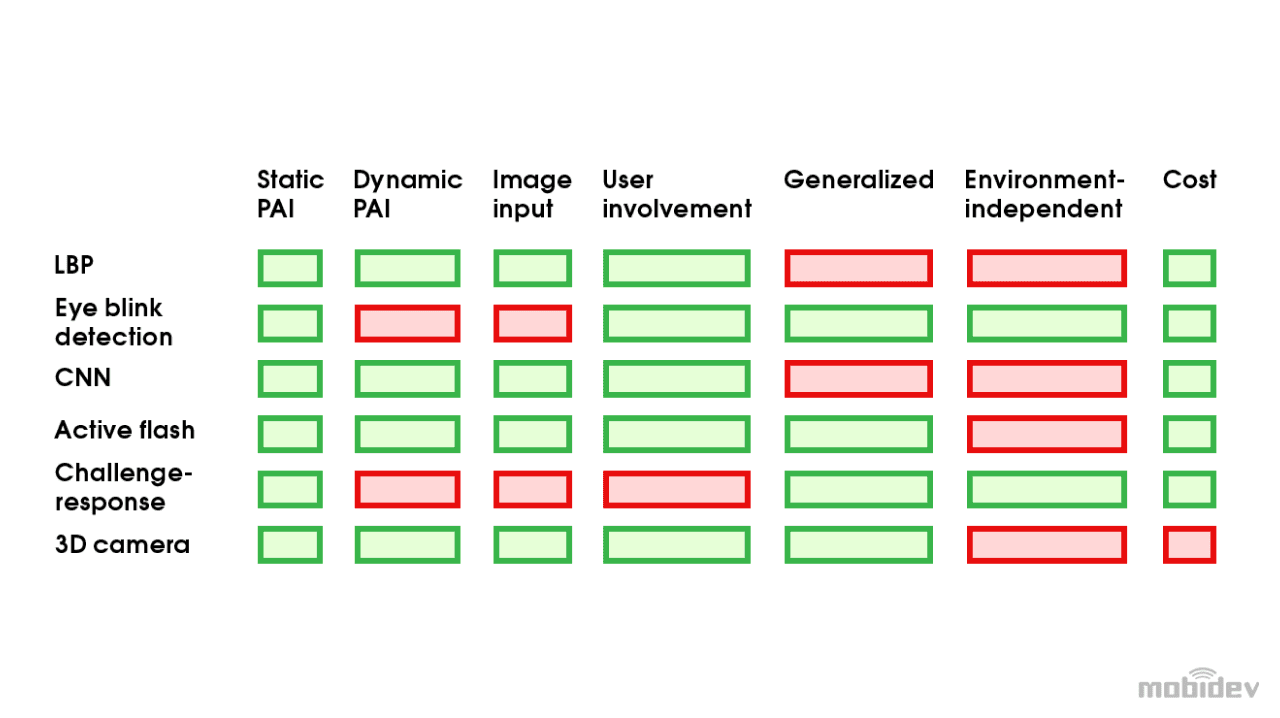

Overview of face anti-spoofing solutions
Liveness detection approaches can be combined. Challenge-response and LBP is one example. The first approach uses movements to determine face liveness. The second ensures these movements are not shown on a flat screen. Light reflection and challenge-response can be combined, showing whether a face appears on a flat surface and whether it’s a static mask or 3D print.

Measuring efficacy: Metrics

The accuracy of an anti-spoofing system can and should be measured.

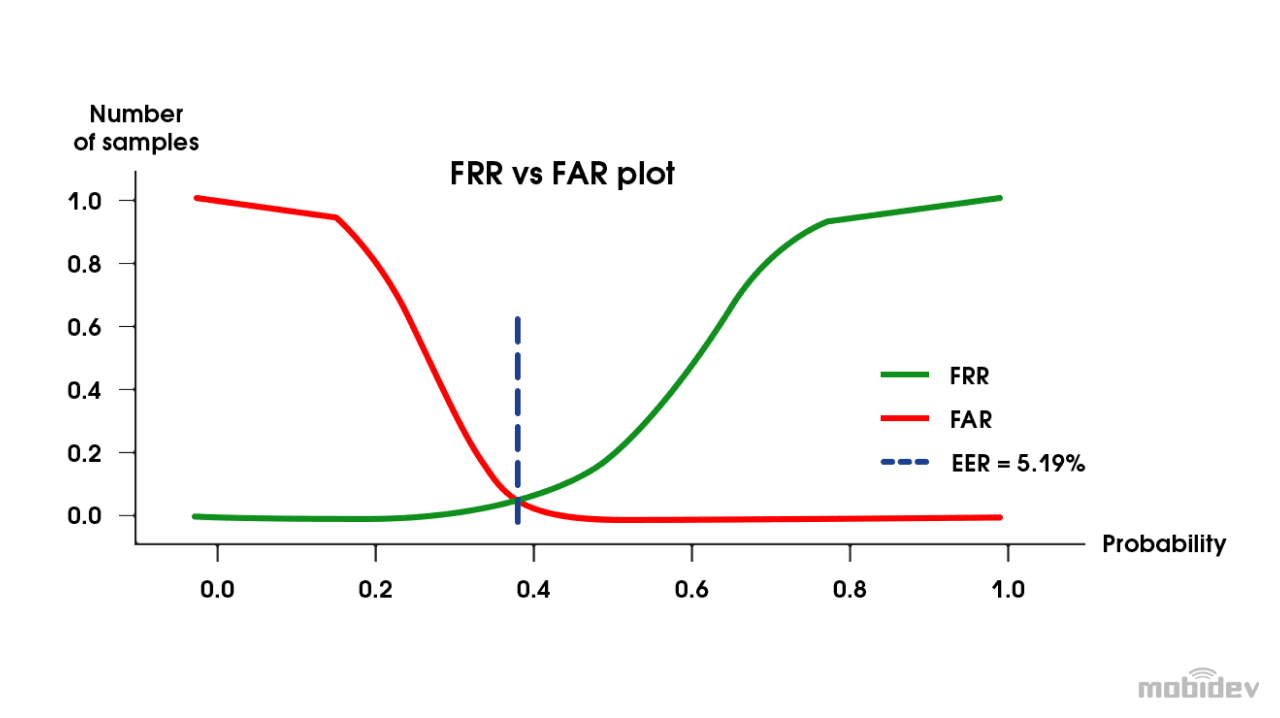

Anti-spoofing system accuracy metrics
False Acceptance Rate (FAR) and False Rejection Rate (FRR), which are common for biometric verification, are also used for face anti-spoofing. Task specifics define the metrics used to interpret errors. If the objective is to catch every attack, FAR should be minimized. If a user-friendly experience has higher priority, FRR becomes more important. If we visualize probabilities in the following way we will see that 2 curves intersect at a certain point. This point is Equal Error Rate and it helps to select the best threshold value for decision making. Depending upon the security requirements, we can move threshold value left or right giving an advantage to FAR or FRR. In our case smooth user experience was more important so we adjusted the threshold value in order to minimize FRR.

Preventing Presentation Attacks: What’s Next?

The question of presentation attack detection (PAD) is still open in the research community. But there is opportunity for change.

Cheaper 3D cameras

It makes sense to use cheap hardware, if it can provide depth information, to get the safest and most reliable PAD system. A significant amount of recent research is based on datasets collected with the help of 3D cameras.

Anomaly detection

In each PAD approach mentioned above, the task was considered a two-class classification. Some propose that anomaly detection is better suited to anti-spoofing, making the network more generalized. All genuine samples have the same nature in common. Attack samples differ but are diverse and rarely combined into a single class.

Metric learning techniques

Metric learning techniques are applied to achieve better generalization by minimizing the variance in feature distributions. Variance can be caused by domain or identity specifics. Presentation attack instruments are considered as domains in this case. For example, print and screen replay attacks form separate distributions in the feature space. When the model faces new, unseen devices used for making an attack, there will be a new domain distribution and thus feature separation might lead to misclassifications. This problem can be solved by using distance-based metrics to help change the network training process to reduce separation between distributions.

Liveness detection based on deep learning is not hype. It’s reality when well-defined product goals are combined with the right approaches, metrics, and future advancement in artificial intelligence. If you have any questions regarding Machine Learning consulting, feel free to address us.
