IoT-based Smart Parking System Development


Victor Gubochkin IoT Lead Solution Architect at MobiDev


By Viktor Gubochkin,

IoT Lead Solution Architect at MobiDev





Anger, annoyance, even a meltdown… What other emotions have you felt when looking for a free parking slot?


Living in cities can be troubling. Urbanization is always expanding, and traffic in cities is becoming heavier every day. The UN Department of Economic and Social Affairs (UN DESA) predicts that all of the increase to the world's population will live in urban areas. This increase is predicted to be as much as 68% by 2050. The population growth is not only a pressing issue for the government but a tangible daily reality for most citizens.


Smart parking system. The modern trend or a growing need?

How smart parking system works

IoT based smart parking solution

Other tech options for smart parking system




Smart Parking System. The Modern Trend or a Growing Need?


Parking problems are not uncommon, especially for big cities. By 2023, market spending for smart parking products and services is expected to grow at a CAGR of 14% and surpass $3.8B according to an IoT Analytics report. The growth of market spending is good news because it will force people to try to find a solution to these traffic problems instead of taking no action.


The problem is quite obvious. But a bigger question is what can technology do to solve it? Is there any way to solve the problem?


How Smart Parking System Works


Smart parking development implies an IoT-based system that sends data about free and occupied parking places via web/mobile application. The IoT-device, including sensors and microcontrollers, is located in each parking place. The user receives a live update about the availability of all parking places and chooses the best one.


In order to investigate technologies behind the smart parking solution, we implemented an internal research project. The main idea was the creation of smart parking using the Internet of Things and ultrasonic sensors, where available parking places could be displayed in a web application.


This video shows the result of our internal IoT-based smart parking project:



IoT Based Smart Parking Solution


Used IoT ecosystem:

Hardware: ESP8266 microcontroller, HC-SR04 distance measurement sensor

Network: MQTT protocol

Cloud & Analytics: Amazon Web Services: AWS IoT, AWS Lambda

Used Programming Languages: MicroPython, Python, JavaScript

User Interface: JavaScript-based web application


The Internet of Things-based smart parking solution

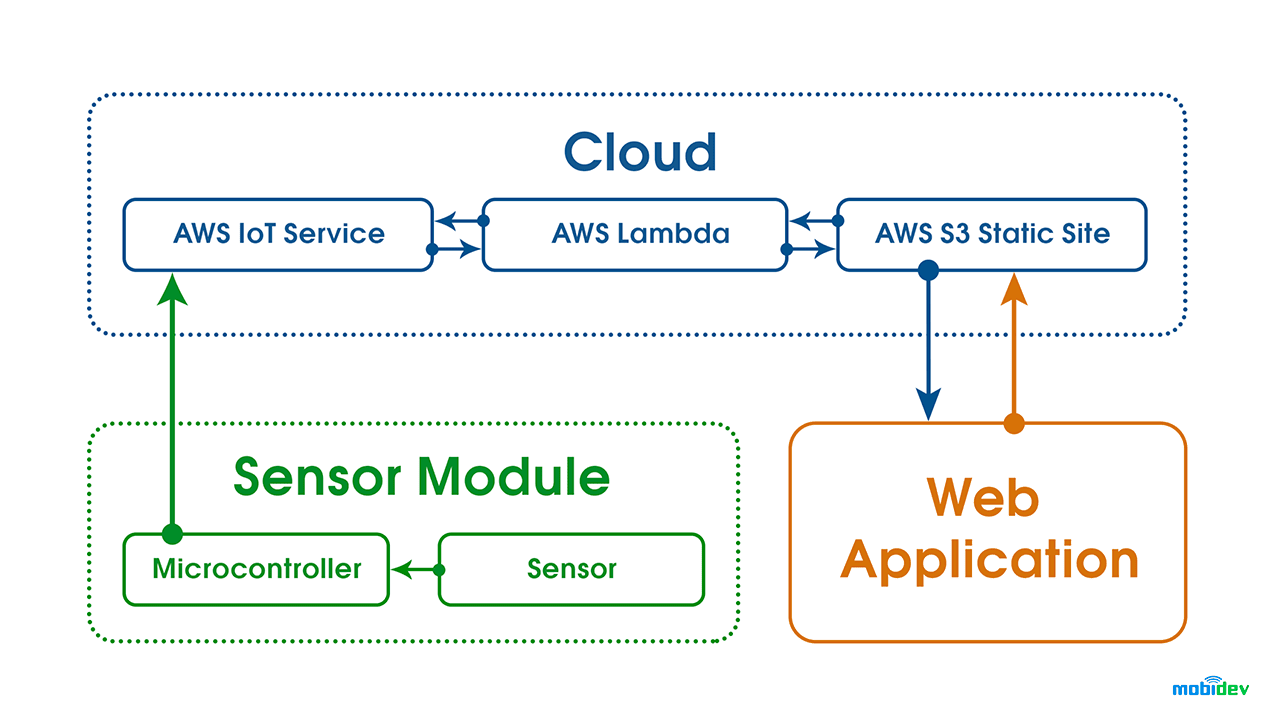

The IoT device consists of an ESP8266 microcontroller and an HC-SR04 distance measurement sensor. The sensor periodically measures the distance and transmits this data to the microcontroller, which is connected to AWS IoT service via the MQTT protocol.




Periodically, the device sends measurements to the cloud where they are stored in AWS IoT shadow as a sensor state. A sensor detects a parked car by measuring the distance to the nearest obstacle—in our case, to the bottom of the car. The state can be "occupied" if the distance is in the range of 100mm - 500mm, "free" if the distance is more than 500mm and "dirty" if the distance is less than 100mm, which means that the sensor may be unclean. All of these values can be easily configured. These values represent both free and occupied parking lots.


In our case, if the sensor detects nothing up to 50 cm, the status is set to "free" and is shown to the user.

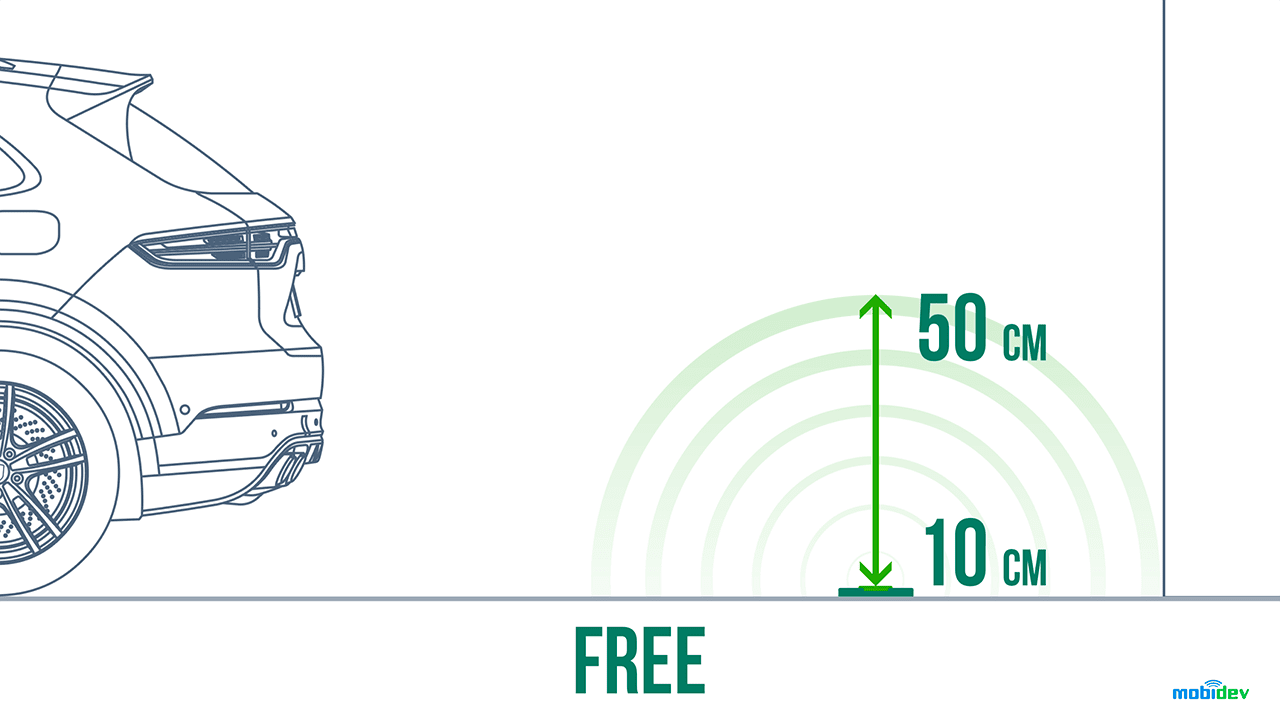

If the sensor detects nothing up to 50 cm, the status is set to free


The "occupied" range is between 10 and 50 cm.

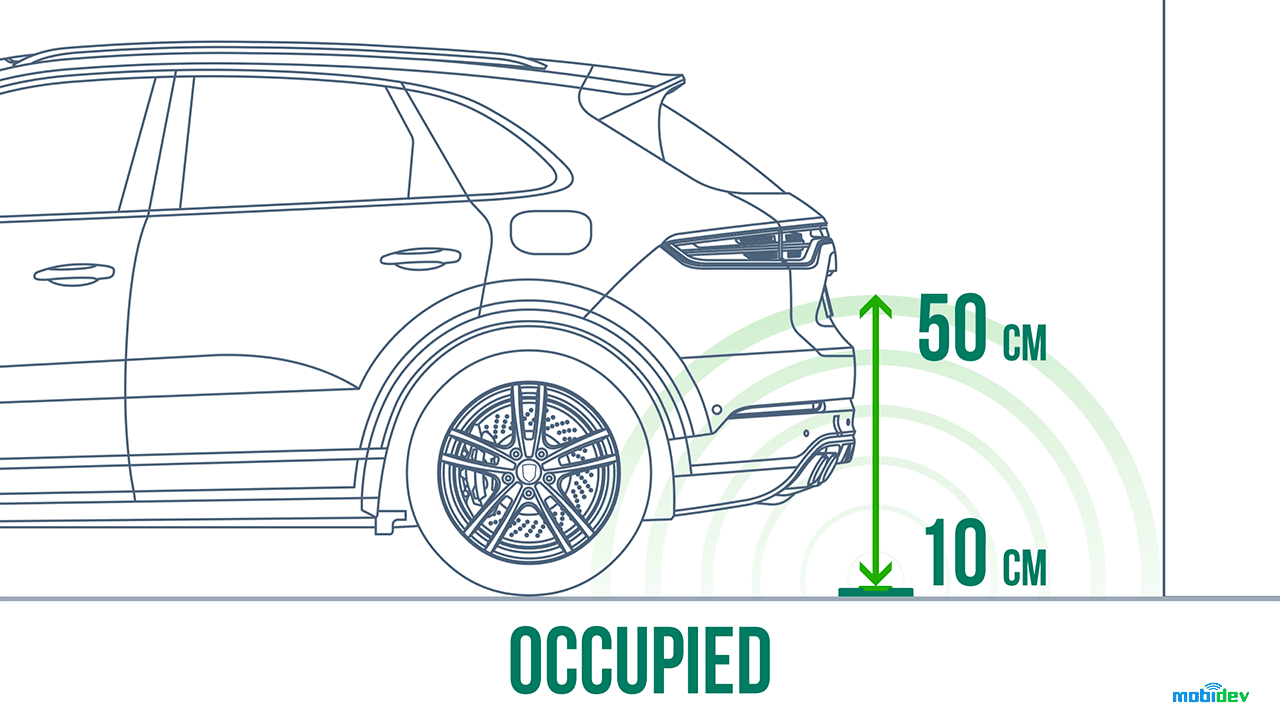

If the sensor detects a car, the status is set to occupied


Below 10 cm, the status is "dirty". It means the sensor might be covered with mud or an obstacle, and requires checking.


When a driver accesses the system via web application, a signal is sent to the Lambda function. It reads the sensor state values ​​from AWS IoT shadow and displays parking spaces depending on the state. Green color - free space, red color - occupied space, yellow color - pollution.


IoT-enabled smart parking lot


For now, this particular solution may be used for MVP and POC (proof of concept).

The building of a full-fledged IoT based smart parking system will be different. Hardware, software and firmware selection will depend on the size of the specific parking area and the number of parking slots.


Mobile and/or web application features also play a big role in the IoT system architecture. If business requirements show demand for a smart parking development, a more advanced application might be created.




All the hardware should always be selected by the IoT specialist. Depending on the IoT system architecture, developers will select the most suitable hardware. In some cases, it's better to use gateway and LPWAN for IoT sensors, for others it may not be.


 IoT software development principles and expertise


Other Tech Options for Smart Parking System


The improvement of smart parking system depends on business needs. Taking into account retail and healthcare technology trends, smart parking might take priority. Returning to our smart parking solution, the main features that might be improved are:


LoRaWAN protocol will increase the autonomous operating time of a smart parking system. Due to LoRa Alliance's specification, the LoRaWAN protocol is optimized for low power consumption, which means that you don't need to change batteries more often than once every 2-5 years. Furthermore, it is designed to scale from a single gateway installation up to large global networks with billions of devices. Thus, it would be a good idea to apply this or any LPWAN protocol for a smart park.


Data Science and Computer Vision technologies based on video stream are also a perfect match for IoT-based innovations. On the subject of smart parking development, Data Science and Computer Vision might be applied for car number recognition.


This feature allows:

• Automatic gate opening, if the car belongs to a given park

• Navigation of cars to available and suitable parking slots


Sensor integration is also a good upgrade for smart parking systems. The most applicable are:


1. Ultrasonic sensors

Ultrasonic sensors measure distance by using ultrasonic waves in time between the emission and reception. Advantages: high accuracy of the sensor. The disadvantages: the probability of sensor contamination.


2. Electromagnetic field sensors

Electromagnetic field sensor is a small-scale microelectromechanical system device for detecting and measuring magnetic fields. The solution is based on the change of the electromagnetic field as the metal mechanisms approach one another.


3. Infrared sensors (IR sensor)

An infrared sensor is an electronic device that emits in order to sense some aspect of its surroundings. An IR sensor can measure the heat of an object as well as detect motion. An IR sensor works in a similar way to ultrasonic sensors.


Custom mobile and web IoT applications might be developed depending on business needs. The function of a parking slot order may be a killer feature for mobile/web apps. If a parking area is a few kilometers long, an integrated AR navigation may help drivers not to get lost looking for own car.




Augmented Reality Development Guide For Business Owners


All the features mentioned above are not the limit of the technology. The more technology innovations we implement, the more features we can add. For most cities, smart parking is still evolving technology. Only by implementing new ideas can we make smart solutions like these available and use them to improve our everyday life.
